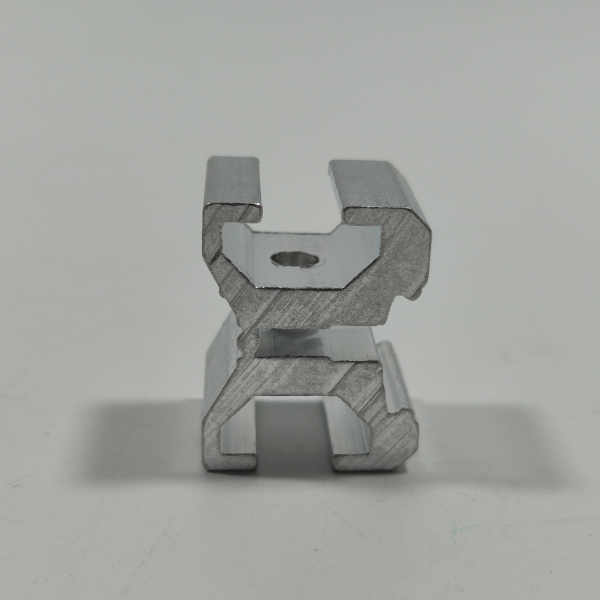

The weight of aluminum alloy accessory 28AC-1 is only 0.03 kg, which is very light. There are T-shaped grooves at the upper and lower ends to facilitate the user to connect the slider and other aluminum alloy accessories. At the same time, there are M6 screw holes inside the T-shaped groove, which can be used to drive screws to make the 28AC-1 accessory and the aluminum pipe more tightly. Similarly, 28AC-1 can be connected with wood plate through M6 screw hole, which is a key part of aluminum tube workbench.  1. The weight of aluminum alloy is about 1/3 of that of metal pipe. The design is light and stable with excellent corrosion resistance. 2. Easy assembly, only needs a screwdriver to complete the assembly. The material is environmentally friendly and recyclable. 3. Aluminum alloy surface is oxidized, and the overall system is beautiful and reasonable after assembly. 4. Product diversification design, DIY customized production, can meet the needs of different enterprises.This inlay joint is usually used to fix the connection of the worktable board or other auxiliary parts. It can also be clamped and fixed with the aluminum pipe by driving the screw into the screw hole. The T-grooves on both sides also support other external or internal joints, such as aluminum alloy fittings such as sliders and pulleys with sliders.

Place of Origin	Guangdong, China
Application	Industrial
Shape	Square
Alloy Or Not	Is Alloy
Model Number	28AC-1
Brand Name	WJ-LEAN
Tolerance	±1%
Temper	T3-T8
Surface treatment	Anodized
Weight	0.03kg/pcs
Material	Aluminum
Size	For 28mm aluminum pipe
Color	Sliver



Packaging & Delivery
Packaging Details	Carton
Port	Shenzhen port
Supply Ability & Additional Information
Supply Ability	10000 pcs per day
Selling Units	PCS
Incoterm	FOB, CFR, CIF, EXW, etc.
Payment Type	L/C, T/T, D/P, D/A, etc.
Transportation	Ocean
Packing	400 pcs/box
Certification	ISO 9001
OEM,ODM	Allow

 As the Lean products manufacturer, WJ-lean adopts the world's most advanced automatic modeling, stamping system and precision CNC cutting system. The machine has automatic / semi-automatic multi gear production mode and the precision can reach 0.1mm. With the help of these machines, WJ lean can also handle various customer needs with ease. At present, WJ-lean's products have been exported to more than 15 countries.We have a complete production chain, from material processing to warehousing delivery, are completed independently. The warehouse also uses a large space. WJ-lean has a warehouse of 4000 square meters to ensure the smooth circulation of products.Moisture absorption and heat insulation are used in the delivery area to ensure the quality of the goods shipped.
